QSH01612, LSB200 S-Beam Jr.® miniature load cell, 10 g capacity, manufactured from 2024-T4 aluminum alloy, M3 × 0.5 thread, overload protected, compatible with vacuum and Low Outgassing applications, featuring a 29 AWG 4-conductor shielded coiled Teflon cable, 15 ft (4.57 m) long.
The LSB200 S-Beam Jr.® miniature load cell is a low-capacity sensor designed for both tension and compression force measurement and testing applications, with a fatigue-rated design. It can be configured with optional accessories including load plates, load buttons, hooks, and threaded adapters, allowing easy integration into a wide variety of applications.
The LSB200 is engineered for low-capacity, high-precision applications. Its compact size and lightweight construction allow it to be easily integrated into systems with limited space without adding significant weight or bulk. The spring element is manufactured from aerospace-grade 2024-T4 aluminum alloy, selected for its excellent strength-to-weight ratio and superior fatigue resistance.

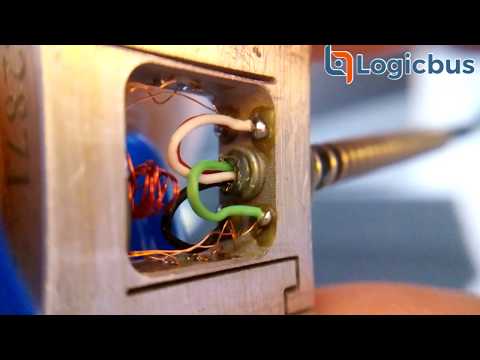

The FUTEK LSB Series features an S-beam design with built-in physical overload protection, significantly improving durability, accuracy, and operational safety. This model incorporates a mechanical overload stop capable of withstanding up to 1000% overload in both tension and compression applications, minimizing the risk of permanent deformation by limiting deflection.
The LSB200 is designed to deliver reliable performance in demanding environments, providing excellent resistance to vibration and mechanical shock while meeting stringent industrial and military durability standards.
FUTEK's ISO-certified calibration laboratory offers multiple calibration options to ensure accuracy, reliability, and compatibility with a wide range of measurement instruments. For specialized applications such as extreme temperatures, radiation, vacuum/Low Outgassing environments, or high-vibration and high-impact conditions, customized solutions are available through FUTEK.
Features
- Optimized for low capacities: 10 to 250 g (0.1 to 2.5 N).
- Compact design: 19.1 × 6.7 × 17.5 mm, with M3 × 0.5 thread.
- High accuracy with non-linearity as low as ±0.1%.
- Wide operating temperature range: –50 to 93 °C (–60 to 200 °F).
- Lightweight: 19.3 g (0.7 oz).
- Mechanical overload protection up to 1000% of rated capacity in both tension and compression.
- Vibration resistance: 20 to 2000 Hz, 0.01 g²/Hz, compliant with MIL-STD-810E.
- Shock resistance: up to 500 g, compliant with IEC 60068-2-27.
- Compatible with vacuum and Low Outgassing applications.
