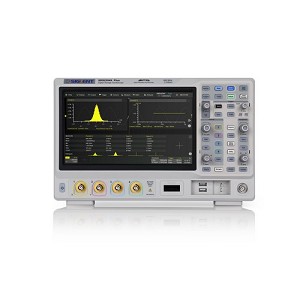

SDS2354X Plus

SDS2000X Plus Series digital oscilloscopes are available in bandwidth of 350 MHz, 200 MHz and 100 MHz, length of 200 Mpts/ch, and up to 4 analog channels +16 digital channels mixed signal analysis ability.
The SDS2000X Plus series employs SIGLENT's SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s(normal mode, up to 500,000 wfm/s in Sequence model), 256-level intensity grading display function plus a color temperature display mode. It also employs a innovative digital trigger system with high sensitivy and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. History waveform recording, Sequence acquisition, Search and navigate functions allow for extended waveform records to be captured, stored, and analysed. An impressive array of bode plot, and power analysis are alse features of the SDS2000X Plus. A 10-bit acquisition mode helps to satisfy applications which requiere more than 8-bit resolution.
The large 10.1" capacitive touch screen supports multi-touch gestures, while the remote web control, mouse and external keyboard support greatly improve the operating efficiency of the SDSX Plus.

• 100 MHz, 200 MHz, 350 MHz models(Upgradable to 500 MHz)
• Real-time sampling rate up to 2 GSa/s
• Record Length up to 200 Mpts
• Waveform capture rate up to 500,000 wfm/s (Sequence mode)
