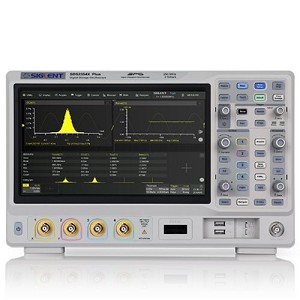

| SDS2104X Plus
|
|
Specifications
|
| Bandwidth |
100 MHz
|
| Channels |
2/4 CH + EXT |
| Real-time Sampling Rate |
2 GSa/s (Interleaved Mode),1 GSa/s
|
| Memory Depth |
200 Mpts/ch (Interleaved Mode), 100 Mpts/ch |
| Waveform Capture Rate |
(Max) 120,000 wfm/s (Normal Mode), 500,000 wfm/s (Sequence Mode) |
| Trigger Types |
Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video, and Serial |
| Serial Trigger & Decoder (Standard) |
Standard: I^2C, SPI, UART, CAN, LIN
Optional: CAN FD, FlexRay, I^2S, MIL-STD-1553B, SENT, Manchester (Decode Only)
|
| I/O |
USB 2.0 Host x2, USB 2.0 Device, 10M/100M LAN, External Trigger, Auxiliary Output (TRIG OUT, PASS/FAIL)
|
| Probe (Std) |
PP215, 200 MHz, 1 probe per channel |
| Display |
10.1” TFT-LCD Touchscreen (1024x600) |
| Weight |
- |
