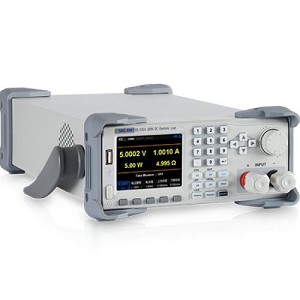

DC 200W, DC150V / 30A programmable electronic load? 25KHz dynamic mode, current rise time range 0.001-2.5A / us, 1mV / 1mA, 3.5 'TFT-LCD, RS232 / USB / LAN / GPIB The Siglent SDL1030X programmable DC electronic load has a 3.5-inch TFT-LCD display, an easy-to-use interface, and excellent performance specifications. The SDL1020X-E has an input range of 150 V / 30 A 300W and 0.1 mV, 0.1 mA Min. Reading resolution.
Features:
- SDL1020X (Single channel ): DC 150 V/30 A, total power up to 200 W
- SDL1030X (Single channel ): DC 150 V/30 A, total power up to 300 W
- 4 static modes / Dynamic mode: CC/CV/CR/CP
- CC Dynamic mode: Continuous, pulsed, toggled
- CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz
- Measuring speed of voltage and current: up to 500 kHz
- Adjustable current rise time range: 0.001 A/us~2.5 A/us
- Min. readback resolution: 0.1 mV, 0.1 mA
- Short-circuit, Battery test, CR-LED mode, and factory test functions
- 4-wire SENSE compensation mode function
- List function supports editing as many as 100 steps
- Program function supports 50 groups of steps
- OCP, OVP, OPP, OTP and LRV protection
- External analog control
- Voltage, Current monitoring via 0-10 V
- 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously
- Built-in RS232/USB/LAN communication interface, USB-GPIB module (optional)
- Waveform trend chart and easy-to-use file storage and call functions
- Includes PC software: Supports SCPI, LabView driver
Accessories Included:
- 1 x Siglent SDL1030X DC Programmable Load
- 1 x Quick start guide
- 1 x Guarantee Card
- 1 x Power Cord
- 1 x USB Cable
