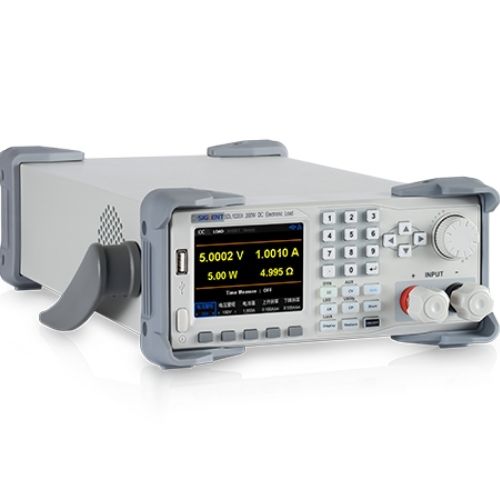

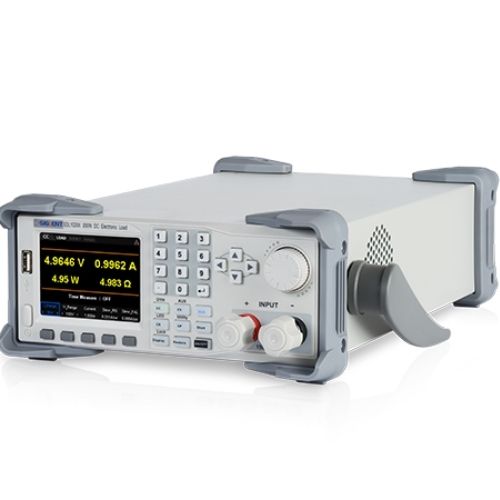

Programmable DC Electronic Load 200W, DC150V / 30A? 25KHz dynamic mode, current rise time range 0.001-2.5A / us, 0.1mV / 0.1mA, 3.5 'TFT-LCD, RS232 / USB / LAN / GPIB. The Siglent SDL1020X-E DC Load leads with measurement resolution of 0.1 mV / 0.1 mA and the base SDL1000X-E series resolution is 1 mV / 1 mA and adjustable current rise times from 0.001 A / µs ~ 2.5 A / µs. For remote communication and control, the SDL series includes S232 / USB / LAN interface types. The SDL1020X-E delivers stability over a wide range of applications and can meet all kinds of testing requirements. including: Power, battery / handheld device design, industry, LED lighting, automotive electronics, and aerospace.
Features:
- SDL1020X (Single channel ): DC 150 V/30 A, total power up to 200 W
- SDL1030X (Single channel ): DC 150 V/30 A, total power up to 300 W
- 4 static modes / Dynamic mode: CC/CV/CR/CP
- CC Dynamic mode: Continuous, pulsed, toggled
- CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz
- Measuring speed of voltage and current: up to 500 kHz
- Adjustable current rise time range: 0.001 A/us~2.5 A/us
- Min. readback resolution: 0.1 mV, 0.1 mA
- Short-circuit, Battery test, CR-LED mode, and factory test functions
- 4-wire SENSE compensation mode function
- List function supports editing as many as 100 steps
- Program function supports 50 groups of steps
- OCP, OVP, OPP, OTP and LRV protection
- External analog control
- Voltage, Current monitoring via 0-10 V

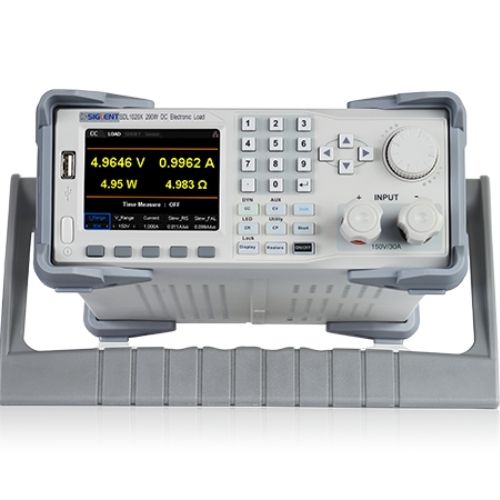

- 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously

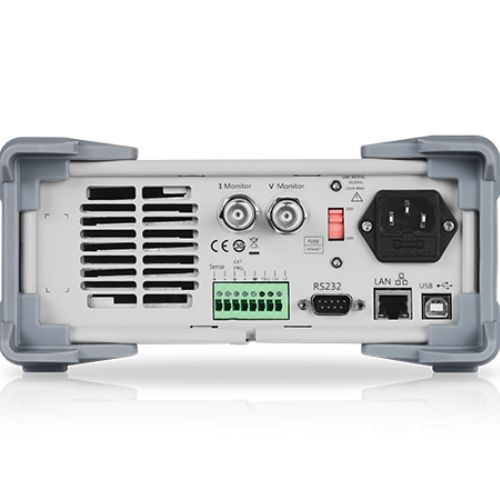

- Built-in RS232/USB/LAN communication interface, USB-GPIB module (optional)
- Waveform trend chart and easy-to-use file storage and call functions
- Includes PC software: Supports SCPI, LabView driver
Accessories Included:
- 1 x Siglent SDL1020X-E DC Programmable Load
- 1 x Quick start guide
- 1 x Guarantee Card
- 1 x Power Cord
- 1 x USB Cable
