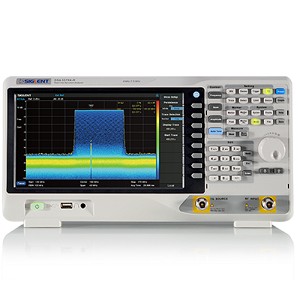

Spectrum Analyzer 9 kHz - 3.2 GHz SSA3032X-R
SSA3032X-R
SSA3032X-R

SSA3032X-R

review
0
0
5
Price: $5,190.00

Part number:SSA3032X-R
Spectrum Analyzer 9 kHz - 3.2 GHz, VNA 100kHz~3.2GHz, RBW 1 Hz - 3 MHz, DANL -165 dBm/Hz, Phase Noise <-98 dBc/Hz, Real Time Bandwidth 25 MHz(Option 40 MHz), RTSA Measurement: Density, Spectrogram, 3D, PvT, Standard VNA and DTF function.

The SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF spectrum, signal analysisand network analysis. With a capability of 40 MHz analysis bandwidth and 7.2 µs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing,to solve modern RF spectrum challenges, like hopping frequency,conflict channel, spectrum interference, and analog/digital modulation analysis, EMI pre-compliance test. They also providea 1-path-2-port vector network analyzer and a distance-to-fault locator for S-parameter measurement, cable and antenna testing. Applications include broadcast monitoring/evaluation, cellular site, IoT, wLan and bluetooth, surveying, research and development, education, production, and maintenance.

Features:
  • Spectrum Analyzer Frequency Range from 9 kHz up to 3.2 GHz/5.0 GHz/7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Level Measurement Uncertainty < 0.7 dB (Typ.)
  • Up to 40 MHz Real Time Analysis Bandwidth Option
  • Minimum Signal Duration with 100% POI, 7.2 us
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation
