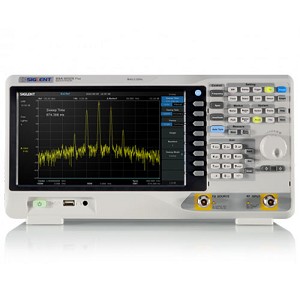

SSA3021X Plus Spectrum Analyzer, 9 kHz to 2.1 GHz, with Advanced RF Analysis, 10.1" Multi-Touch Display, and Optional EMI, Reflection, and Vector Signal Analysis Functions
The SIGLENT SSA3021X Plus is a high-performance spectrum analyzer designed for RF signal analysis, network measurements, and advanced communications testing. With a frequency range from 9 kHz to 2.1 GHz, it delivers precise measurements, low noise performance, and excellent stability for research, development, manufacturing, maintenance, and educational applications.
In addition to its spectrum analysis capabilities, the SSA3021X Plus can be expanded through software options to perform RF power measurements, vector signal modulation analysis, reflection measurements, advanced signal analysis, and EMI pre-compliance testing. Its 10.1-inch multi-touch display and web browser remote-control capabilities provide a user-friendly experience both in laboratory and field environments.
Its flexible architecture makes it an ideal tool for broadcast monitoring, site surveys, analog and digital modulation analysis, S-parameter measurements, EMI testing, and research and development applications.
Key Features:
- Frequency range from 9 kHz to 2.1 GHz
- Displayed Average Noise Level (DANL) down to -161 dBm/Hz (typical)
- Phase noise of -98 dBc/Hz at 10 kHz offset (1 GHz, typical)
- Level measurement uncertainty less than 0.7 dB (typical)
- Minimum 1 Hz resolution bandwidth (RBW)
- Built-in preamplifier as standard
- Optional tracking generator
- Optional vector signal modulation analysis
- Optional reflection measurement kit
- Optional EMI filter and quasi-peak detector kit
- Optional advanced measurement kit
- 10.1-inch multi-touch display
- Supports external mouse and keyboard operation
- Remote control through a web browser on PCs and mobile devices
- Remote file management and instrument operation
- Ideal for RF analysis, wireless communications, EMI testing, and S-parameter measurements
- Suitable for R&D, education, manufacturing, maintenance, and product development applications
Note:
New SSA3000X Plus instruments include approximately 100 hours of free trial access to the SSA3000XP-EMI, SSA3000XP-AMK, SSA3000XP-REFL, SSA3000XP-AMA, and SSA3000XP-DMA software options. The trial timer runs whenever the instrument is powered on. Once the trial period expires, the corresponding functions will be disabled until the appropriate licenses are purchased.
