Your price*: $499.00

Stock: 1

In stock.

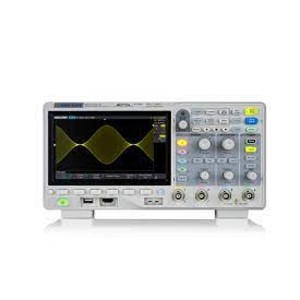

Part number:SDS1104X-E
Oscilloscope, 100 MHz;4 channels; 1 GSa/s; 14 M memory depth; 100,000 wfm/s waveform capture rate; 7 display (800*480 pixels); SPO technology,1Mpts FFT,Serial bus triggering and decode (Standard), supports IIC, SPI, UART, RS232, CAN, and LIN;Support MSO,USSB AWG,Bode Plot;USB WIFI.

SDS1000X-E Super Phosphor Oscilloscopes four channel scope is available in 100 MHz models and incorporates two 1 GSa/s ADCs and two 14 Mpts memory modules. When all channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 7 Mpts. When only a single channel per ADC is active, the maximum sample rate is 1 GSa/s and the maximum record length is 14 Mpts. For ease -of -use, the most commonly used functions can be accessed with its user- friendly front panel design.

The SDS1000X-E series employs a new generation of SPO (Super -Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types is included. The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new 1 million point FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra.

  • 4-channels
  • Bode Plot function (Amplitude and Phase vs. Frequency or, rather Gain / Phase vs. Frequency). This does require the optional external generator.
  • The 4 channels share two A-to-D converters. The Rigol shares only 1 A-to-D between all four channels.
  • The Siglent units is 100MHz in Bandwidth.
  • An optional MSO (16 digital channel).
  • External generator (optional).
  • Optional Wi-Fi adapter. Use your scope wirelessly un a network.
  • Web-Browser based remote control.
